Steel Wooden Door Specification

Door Panel

BLD stamping class cold-rolled steel sheet 0.5mm/0.6mm/0.7mm/0.8mm

Door Frame

Timber Core / UPVC reinforced material/WPC

Architrave

UPVC reinforced material/WPC

Door Leaf Thickness

40mm / 45mm

Standard Size H x W

1850-2,200 (+34) mm x 680-930 (+50)mm

Door Stamp max size

600x1600mm

Wall Thickness

90mm-300mm

Sealing Type

Hem / Smooth Joint / Seamless

Skeleton

Fir Joint Timber

Infilling

PU foam/Honeycomb/ Rock wool

Opening Direction

Inward / Outward swing

Opening Degree

90 degrees / 110 degrees /150 degrees /180 degrees

Patterns and Colors

Refer to chart

Accessories

Reinforced SS hinges, door catch, SS handles, bottom block

Application

Office/House/Flat/Villa/Hotel/Inn

Property

Sound insulation, Shockproof, Thermal preserved, Moistureproof, Anti-scratch,

Anti-deformation, Anti-fade, anti-impact

Environmental performance

Covers of green paint free of Eco-problem

Appearance

Innovative and various textures, proper lustrous, decent molding

OEM

Service available

Loading Quantity

20 GP 160-180 pcs / 40HQ 370-400 pcs

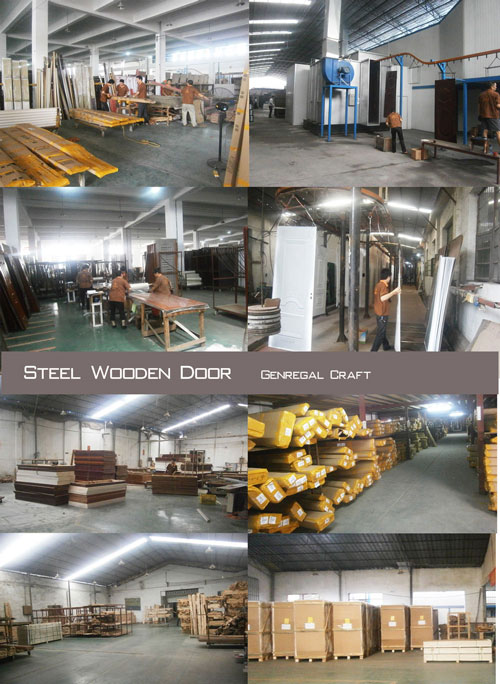

Equipment:

1. Advanced temperature control spray painting, baking equipment and delicate transferring process, emphasize the luxury and long durability

2. Eco-friendly coating ingredients and fine coating process, gives the incredible texture and tenacious surface feeling .

3.6 high efficiency production flows enable the capacity of bulk order.

Solid Wood Door Specification

Door Panel

Sapelli/Manchurian Ash/Birch/Teakwood/Oak/ Cherry/Rosewood

Door Frame

Wood veneer covered joint Fir/Pine timber

Architrave

Wood veneer covered HDF and timber

Door Leaf Thickness

40mm / 45mm

Standard Size H x W

1850-2,200 (+34) mm x 680-930 (+50)mm

Wall Thickness

90mm-350mm

Door Core

Full timber board/Aperture composite board/Multilayer composite board

Pattern

Planer milling / Structured molding / Complex carving

Paint

3 Undertone (PE PU) 2 Coat (PU)

Polish

6 Delicate hand polish processes

Opening Direction

Inward / Outward swing

Opening Degree

90 degrees / 110 degrees /150 degrees /180 degrees

Colors

Refer to chart

Hardware Fittings

SS lockset with handle, door catch, door closer

Application

Office/House/Flat/Villa/Hotel/Inn

Property

Sound insulation, Shockproof, Thermal preserved, Anti-scratch, Anti-deformation

Environmental performance

Covers of green paint free of Eco-problem

Appearance

Ultra natural wood surface with proper pertinent coat to each wood species

OEM

Service available

Loading Quantity

20 GP 160-180 pcs / 40HQ 370-400 pcs

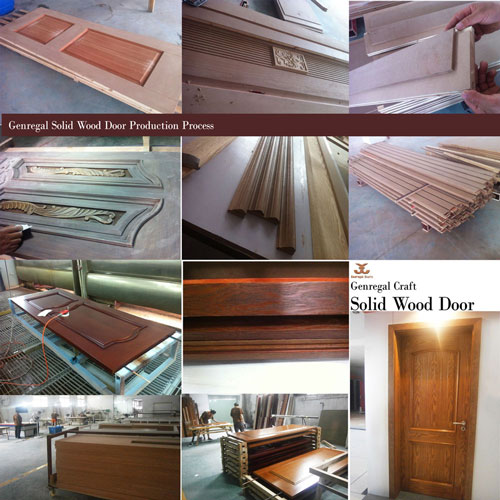

Equipment:

Compact designed jointing machine with automatic feed, pressing, blanking function gives basic firm structure of wood components

Multifunctional push sawing machine makes sure the board parts accurate in custom size.

The high precision carving and milling machine provide the fine woodworking in general.

Automatic veneer cutting machine enables the wood surface match the accuracy.

The most seasoned paint masters takes charge of the 5 different paint coating in clean heating workshop.

Security Door Specification

Door Panel

BUFD ultra deep stamping class cold-rolled steel sheet 0.5mm/0.6mm/0.8mm/1.0mm

Door Frame

Super thick steel 1.5mm/1.8mm/2.0mm

Door Leaf Thickness

50 mm / 60 mm/70 mm / 90 mm/ 110mm

Standard Size H x W

1,750-2,150 mm x 720-1020 mm

Wall Thickness

150mm-250mm

Infilling

PU foam/Honeycomb/Rock wool

Opening Direction

Inward / Outward Swing

Opening Degree

90 degrees /150 degrees / 180 degrees

Lock and Handle Position

On left / On right

Patterns and Colors

Refer to chart

Hardware Fittings

Reinforced 20mm SS hinges, Handles, Peephole, Hidden doorbell,

Rubber seal and magnetic seal, Installing bolts, Bottom block

Lockset

AB machinery lock, Dual circle lock, Side lock, Up-down lock

Application

House/Flat/Villa/Hotel/Inn

Security Grade

National grade 1,2,3,4 according to the requirement

Property

Sound insulation, Shockproof, Thermal preserved, Moistureproof, Anti-scratch, Anti-deformation, Anti-fade, anti-impact

Environmental Performance

Covers of green paint free of Eco-problem

Appearance

Patent texture, proper lustrous, decent molding

OEM

Service available

Loading Quantity

20 GP 120-140 pcs / 40HQ 310-340 pcs

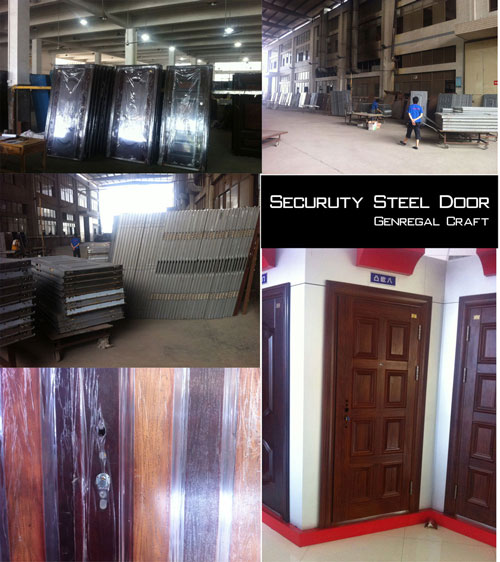

Equipment

1.The door panels are molded by 2000 ton’s hydraulic equipment to make sure the flatness and strength.

2.Rolling pressing equipment makes sure the rigidness and attractiveness of door frame.

3.Advanced auto-spray coating line brings the most lustrous , elegant, adhesive door surface.

4.Automatic control system keeps cutting precision within 0.05mm/m.
